PRODUCT SPOTLIGHT
Worth a Closer Look

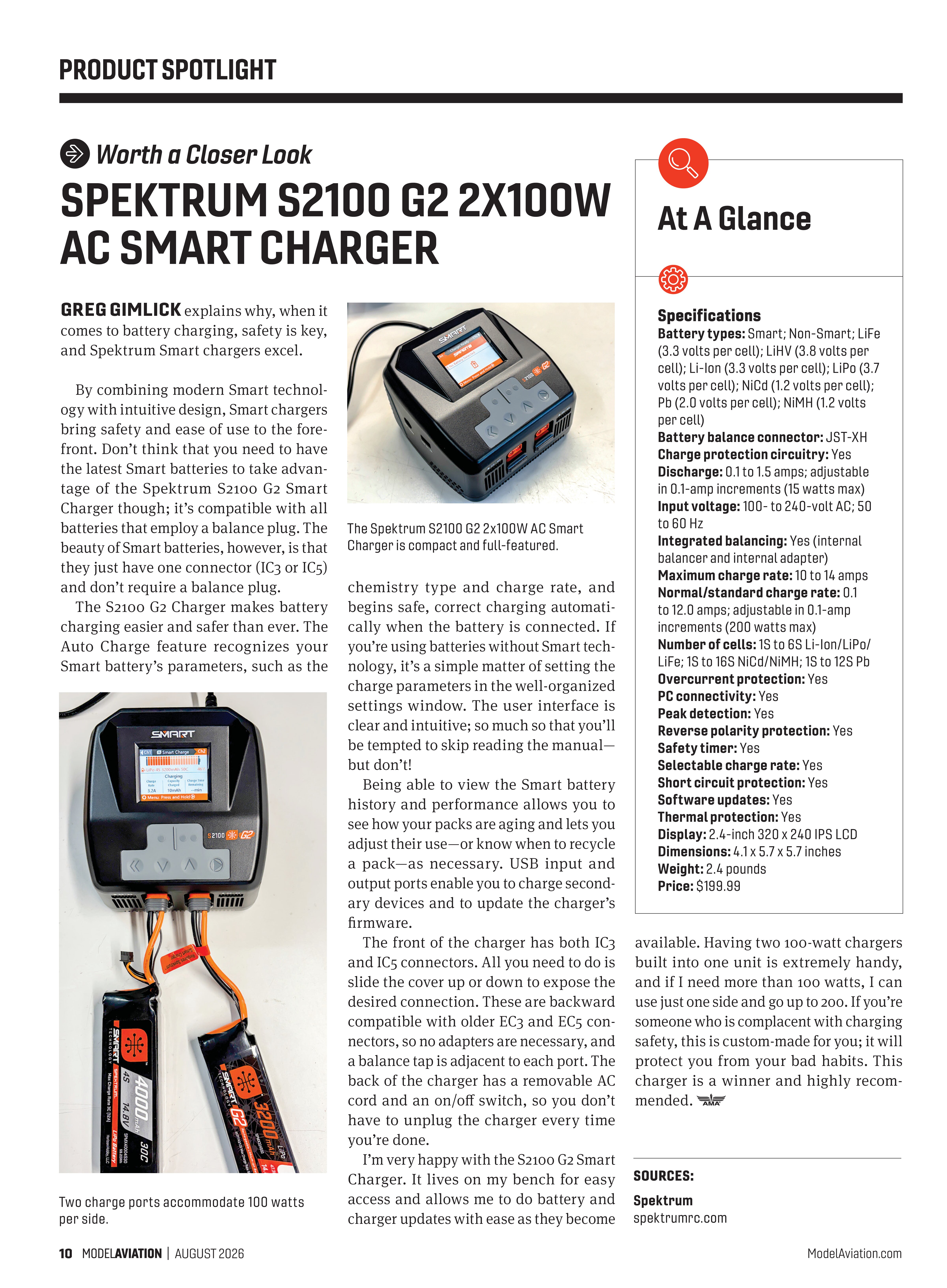

SPEKTRUM S2100 G2 2X100W AC SMART CHARGER
GREG GIMLICK explains why, when it comes to battery charging, safety is key, and Spektrum Smart chargers excel.
By combining modern Smart technology with intuitive design, Smart chargers bring safety and ease of use to the forefront. Don’t think that you need to have the latest Smart batteries to take advantage of the Spektrum S2100 G2 Smart Charger though; it’s compatible with all batteries that employ a balance plug. The beauty of Smart batteries, however, is that they just have one connector (IC3 or IC5) and don’t require a balance plug.
The S2100 G2 Charger makes battery charging easier and safer than ever. The Auto Charge feature recognizes your Smart battery’s parameters, such as the
chemistry type and charge rate, and begins safe, correct charging automatically when the battery is connected. If you’re using batteries without Smart technology, it’s a simple matter of setting the charge parameters in the well-organized settings window. The user interface is clear and intuitive; so much so that you’ll be tempted to skip reading the manual—but don’t!
Being able to view the Smart battery history and performance allows you to see how your packs are aging and lets you adjust their use—or know when to recycle a pack—as necessary. USB input and output ports enable you to charge secondary devices and to update the charger’s firmware.
The front of the charger has both IC3 and IC5 connectors. All you need to do is slide the cover up or down to expose the desired connection. These are backward compatible with older EC3 and EC5 connectors, so no adapters are necessary, and a balance tap is adjacent to each port. The back of the charger has a removable AC cord and an on/off switch, so you don’t have to unplug the charger every time you’re done.
I’m very happy with the S2100 G2 Smart Charger. It lives on my bench for easy access and allows me to do battery and charger updates with ease as they become available. Having two 100-watt chargers built into one unit is extremely handy, and if I need more than 100 watts, I can use just one side and go up to 200. If you’re someone who is complacent with charging safety, this is custom-made for you; it will protect you from your bad habits. This charger is a winner and highly recommended.
At A Glance
Specifications
Battery types: Smart; Non-Smart; LiFe (3.3 volts per cell); LiHV (3.8 volts per cell); Li-Ion (3.3 volts per cell); LiPo (3.7 volts per cell); NiCd (1.2 volts per cell); Pb (2.0 volts per cell); NiMH (1.2 volts per cell)
Battery balance connector: JST-XH
Charge protection circuitry: Yes
Discharge: 0.1 to 1.5 amps; adjustable in 0.1-amp increments (15 watts max)
Input voltage: 100- to 240-volt AC; 50 to 60 Hz
Integrated balancing: Yes (internal balancer and internal adapter)
Maximum charge rate: 10 to 14 amps
Normal/standard charge rate: 0.1 to 12.0 amps; adjustable in 0.1-amp increments (200 watts max)
Number of cells: 1S to 6S Li-Ion/LiPo/LiFe; 1S to 16S NiCd/NiMH; 1S to 12S Pb
Overcurrent protection: Yes
PC connectivity: Yes
Peak detection: Yes
Reverse polarity protection: Yes
Safety timer: Yes
Selectable charge rate: Yes
Short circuit protection: Yes
Software updates: Yes
Thermal protection: Yes
Display: 2.4-inch 320 x 240 IPS LCD
Dimensions: 4.1 x 5.7 x 5.7 inches
Weight: 2.4 pounds
Price: $199.99

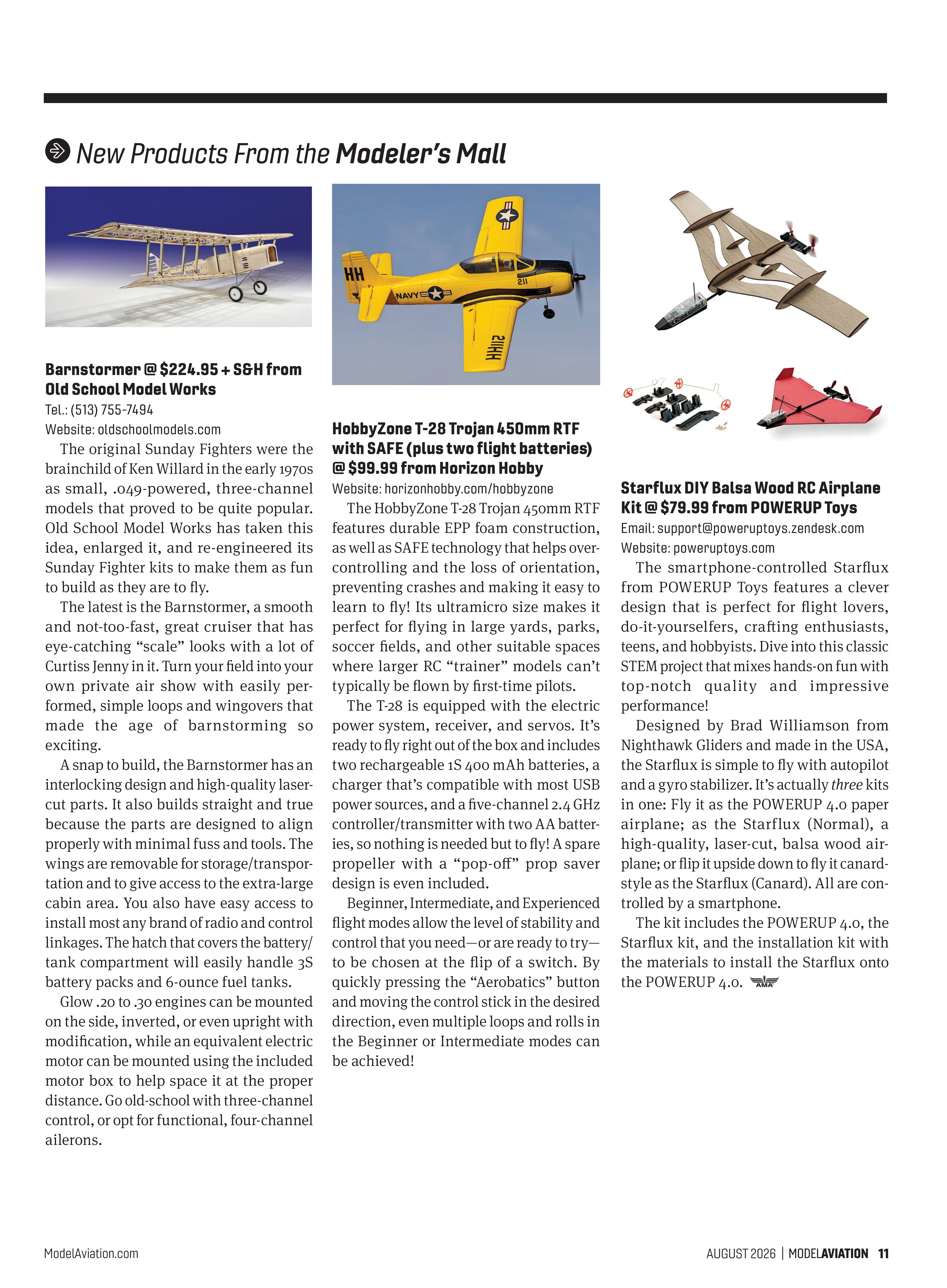

New Products From the Modeler’s Mall
Barnstormer @ $224.95 + S&H from Old School Model Works
Tel.: (513) 755-7494
Website: oldschoolmodels.com
The original Sunday Fighters were the brainchild of Ken Willard in the early 1970s as small, .049-powered, three-channel models that proved to be quite popular. Old School Model Works has taken this idea, enlarged it, and re-engineered its Sunday Fighter kits to make them as fun to build as they are to fly.
The latest is the Barnstormer, a smooth and not-too-fast, great cruiser that has eye-catching “scale” looks with a lot of Curtiss Jenny in it. Turn your field into your own private air show with easily performed, simple loops and wingovers that made the age of barnstorming so exciting.
A snap to build, the Barnstormer has an interlocking design and high-quality laser-cut parts. It also builds straight and true because the parts are designed to align properly with minimal fuss and tools. The wings are removable for storage/transportation and to give access to the extra-large cabin area. You also have easy access to install most any brand of radio and control linkages. The hatch that covers the battery/tank compartment will easily handle 3S battery packs and 6-ounce fuel tanks. Glow .20 to .30 engines can be mounted on the side, inverted, or even upright with modification, while an equivalent electric motor can be mounted using the included motor box to help space it at the proper distance. Go old-school with three-channel control, or opt for functional, four-channel ailerons.
HobbyZone T-28 Trojan 450mm RTF with SAFE (plus two flight batteries) @ $99.99 from Horizon Hobby
Website: horizonhobby.com/hobbyzone
The HobbyZone T-28 Trojan 450mm RTF features durable EPP foam construction, as well as SAFE technology that helps over-controlling and the loss of orientation, preventing crashes and making it easy to learn to fly! Its ultramicro size makes it perfect for flying in large yards, parks, soccer fields, and other suitable spaces where larger RC “trainer” models can’t typically be flown by first-time pilots.
The T-28 is equipped with the electric power system, receiver, and servos. It’s ready to fly right out of the box and includes two rechargeable 1S 400 mAh batteries, a charger that’s compatible with most USB power sources, and a five-channel 2.4 GHz controller/transmitter with two AA batteries, so nothing is needed but to fly! A spare propeller with a “pop-off” prop saver design is even included.
Beginner, Intermediate, and Experienced flight modes allow the level of stability and control that you need—or are ready to try—to be chosen at the flip of a switch. By quickly pressing the “Aerobatics” button and moving the control stick in the desired direction, even multiple loops and rolls in the Beginner or Intermediate modes can be achieved!
Starflux DIY Balsa Wood RC Airplane Kit @ $79.99 from POWERUP Toys
Email: support@poweruptoys.zendesk.com
Website: poweruptoys.com
The smartphone-controlled Starflux from POWERUP Toys features a clever design that is perfect for flight lovers, do-it-yourselfers, crafting enthusiasts, teens, and hobbyists. Dive into this classic STEM project that mixes hands-on fun with top-notch quality and impressive performance!
Designed by Brad Williamson from Nighthawk Gliders and made in the USA, the Starflux is simple to fly with autopilot and a gyro stabilizer. It’s actually three kits in one: Fly it as the POWERUP 4.0 paper airplane; as the Starflux (Normal), a high-quality, laser-cut, balsa wood airplane; or flip it upside down to fly it canard-style as the Starflux (Canard). All are controlled by a smartphone.
The kit includes the POWERUP 4.0, the Starflux kit, and the installation kit with the materials to install the Starflux onto the POWERUP 4.0.
